Workspace Management

Calmo Bridge includes a complete file browsing and editing environment, allowing you to navigate your projects, view files, and make edits—all without leaving the application. This integrated workspace helps Calmo understand your project structure and provide better context-aware assistance.

​
Overview

The workspace features include:
  • Visual File Browser - Tree-view navigation of your local projects
  • Code Editor - Edit files with syntax highlighting and save directly
  • Workspace Organization - Categorize projects by type (Git, Terraform, CI/CD)
  • Multi-Workspace Support - Work with multiple projects simultaneously
  • Settings Panel - Manage bridge configuration and connection
Workspace file browser showing expandable project folders

​
File Browser

The left sidebar provides a tree-view file browser for all your configured workspaces: Features:
  • Expandable Folders - Click folder names to expand/collapse
  • File Type Icons - Visual indicators for different file types
  • Multiple Workspaces - Each workspace appears as a top-level folder
  • Quick Access - Click any file to open it in the editor
  • Nested Navigation - Browse deep directory structures
Example Structure:
📁 Workspaces
  ├─ 📁 calmo-demos
  │   ├─ 📁 src
  │   ├─ 📄 package.json
  │   └─ 📄 README.md
  ├─ 📁 calmo-ci
  │   ├─ 📁 environments
  │   │   ├─ 📁 prod
  │   │   └─ 📁 staging
  │   └─ 📄 kustomization.yaml
  └─ 📁 calmo-gmail
      └─ 📁 terraform

​
File Operations

Opening Files:
  • Click any file in the tree to open it in the editor
  • Files open in new tabs in the center panel
  • Already-open files become focused when clicked again
Supported File Types:
  • All text-based files (code, config, markdown, etc.)
  • Syntax highlighting for 100+ languages
  • Binary files show a preview indicator
Files edited by Calmo (via chat commands) automatically refresh in the editor if they’re open.

​
Adding Workspaces

​
Workspace Types

Calmo Bridge organizes workspaces into categories to help the AI understand your project context:

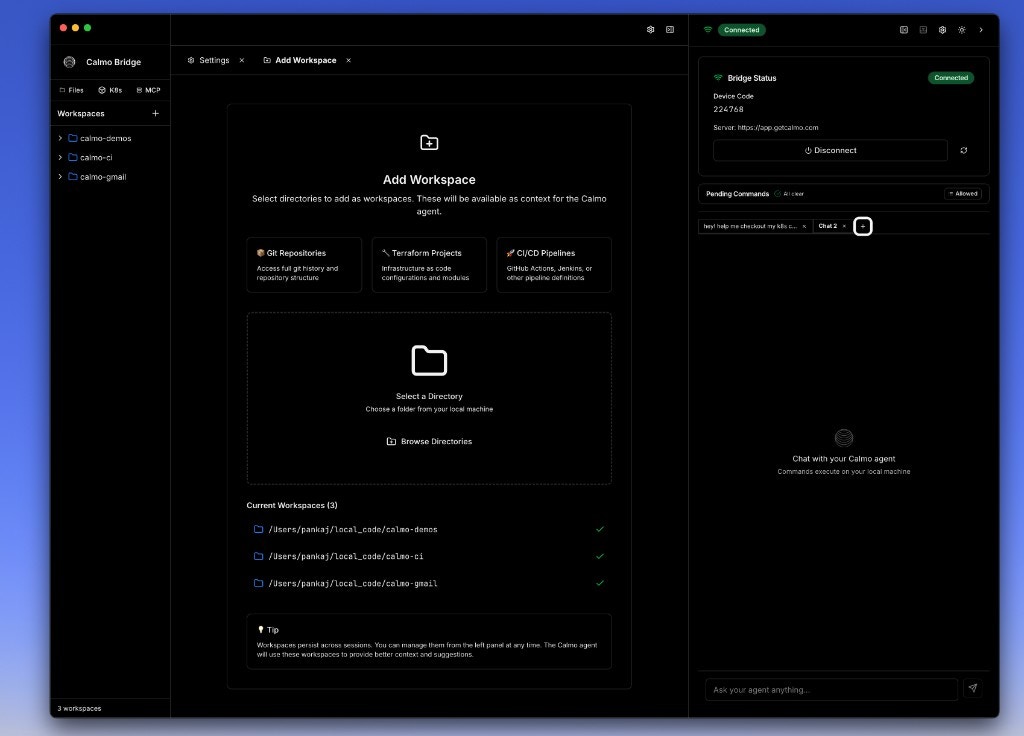

Add Workspace modal showing categorized workspace types
Click the + button next to “Workspaces” to open the Add Workspace dialog.

​
Workspace Categories

Git Repositories

Full git history and repository structure. Best for:
  • Application codebases
  • Monorepos
  • Open source projects

Terraform Projects

Infrastructure as code configurations and modules. Best for:
  • Cloud infrastructure
  • Terraform workspaces
  • IaC modules

CI/CD Pipelines

GitHub Actions, Jenkins, or other pipeline definitions. Best for:
  • Deployment configs
  • Workflow definitions
  • Build scripts

​
Adding a Workspace

1

Click Add Workspace

Click the + button in the Workspaces section of the left sidebar
2

Choose Category (Optional)

Select a category that best describes your project:
  • 🎨 Git Repositories
  • 🏗️ Terraform Projects
  • 🚀 CI/CD Pipelines
Or skip this and browse directly
3

Browse for Directory

Click Browse Directories and select the folder you want to add
4

Confirm

The workspace appears in the “Current Workspaces” list with a checkmark. Close the dialog when done.
Current Workspaces List: The bottom of the Add Workspace dialog shows all currently configured workspaces:
✓ /Users/pankaj/local_code/calmo-demos
✓ /Users/pankaj/local_code/calmo-ci
✓ /Users/pankaj/local_code/calmo-gmail
This helps you avoid adding the same directory twice.

​
File Editor

​
Opening and Editing Files

File editor with syntax highlighting and multiple tabs
Editor Features:
  • Tabbed Interface - Multiple files open in separate tabs
  • Syntax Highlighting - Automatic language detection
  • Line Numbers - For easy reference in conversations
  • Code Folding - Collapse/expand code blocks
  • Find & Replace - Cmd/Ctrl+F to search
  • Auto-Save - Changes save automatically (or Cmd/Ctrl+S for manual save)

​
Supported Languages

The editor provides syntax highlighting for:
  • Web: JavaScript, TypeScript, HTML, CSS, React (JSX/TSX)
  • Backend: Python, Go, Java, C#, Ruby, PHP
  • Config: YAML, JSON, TOML, XML
  • Infrastructure: Terraform (HCL), Dockerfile, Kubernetes manifests
  • Shell: Bash, Zsh, PowerShell
  • Database: SQL, GraphQL
  • Markdown: README files, documentation

​
Working with Tabs

ActionShortcut (macOS)Shortcut (Windows/Linux)
Close TabCmd+WCtrl+W
Next TabCmd+Shift+]Ctrl+Tab
Previous TabCmd+Shift+[Ctrl+Shift+Tab
Close AllRight-click tab → Close AllRight-click tab → Close All
Tab Indicators:
  • 📄 filename.yaml - File name in tab
  • × - Close button
  • • (dot) - Unsaved changes
  • Lock icon - Read-only file

​
Editing Workflow

Typical Flow:
  1. Browse to find the file in the workspace tree
  2. Click to open in the editor
  3. Edit the file as needed
  4. Save with Cmd/Ctrl+S (or auto-save kicks in)
  5. Ask Calmo about the changes or run related commands
Example: “I just updated the deployment.yaml. Can you apply it to the staging cluster?” Calmo sees the file in your workspace and can reference it in commands.

​
Integration with Chat

​
File Context

When you have files open in the editor, Calmo can:
  • Reference file contents in responses
  • Suggest edits based on what you’re working on
  • Generate commands related to the open files
  • Understand project structure from your workspace layout
Example Conversation:
You: "What does this kustomization.yaml do?"
[You have kustomization.yaml open in editor]

Calmo: "Looking at your kustomization.yaml (open in your editor),
it's configuring..."

​
File Editing by Calmo

If Calmo suggests file changes and you approve:
  • Changes are made to the file on disk
  • If the file is open in your editor, it refreshes automatically
  • You’ll see the updated content
  • Undo/redo history is preserved
Calmo can only edit files within configured workspaces. Files outside workspaces are read-only.

​
Settings Panel

​
Accessing Settings

The Settings panel appears in the right sidebar when you click the settings icon:
Settings panel showing bridge status and configuration

​
Bridge Status

Information Displayed:
  • Bridge Status - Connection state (Connected/Disconnected)
  • Device Code - Your unique device identifier (e.g., 377348)
  • Server URL - The Calmo server you’re connected to
  • Disconnect Button - Unpair the device
Status Indicators:
  • 🟢 Connected - Active connection to Calmo
  • 🟡 Connecting - Attempting to connect
  • 🔴 Disconnected - No active connection
  • 🟠 Waiting for Code - Ready to pair

​
Pending Commands Summary

The settings panel also shows a summary of pending commands:
Pending Commands    🔔 All clear  ✅ Allowed
  • All clear - No commands waiting for approval
  • N commands in queue - Commands awaiting your review
  • Allowed - Auto-approval is active for some patterns
Click to jump to the Command Approval panel.

​
MCP Servers Panel

​
Server List

The MCP Servers section (below Workspaces in left sidebar) shows all configured servers: Display Format:
🔌 MCP Servers              ↻

Servers: 4    Tools: 64

  > 🟢 context7              2
  > 🟢 github               51
  > 🟢 mastra               10
  > 🟢 sequential-thinking   1
Information Shown:
  • Server name - Configured identifier
  • Connection status - Green dot = connected
  • Tool count - Number of tools provided
  • Type badge - (http) or (stdio) when expanded

​
Server Details

Click on any server to view its detail panel:
MCP server detail view showing server information
Detail Panel Contents: Server Information:
  • Type - http or stdio
  • Status - Connected/Disconnected/Error
  • Tools Available - Count and expandable list
Available Tools:
  • “2 tools provided by this server” (expandable)
  • Click to see tool names and descriptions
Action Buttons:
  • Reload Server - Restart the server connection
  • Edit Config - Open mcp.json in the editor

​
Managing Servers

Reload a Server:
  1. Click the server in the list
  2. Click Reload Server button
  3. Wait for reconnection
Edit Configuration:
  1. Click Edit Config (either in server detail or bottom of MCP panel)
  2. The mcp.json file opens in the editor
  3. Make changes
  4. Save the file
  5. Servers auto-reload when config changes
Refresh All Servers:
  • Click the ↻ refresh icon next to “MCP Servers”
  • All servers will reconnect

​
Workspace Best Practices

​
Organization

Do:
  • ✅ Add specific project directories
  • ✅ Use workspace categories appropriately
  • ✅ Keep workspace count manageable (< 10 is ideal)
  • ✅ Remove workspaces when projects are archived
Don’t:
  • ❌ Add your entire home directory
  • ❌ Add system directories like /etc or /var
  • ❌ Duplicate workspaces (same directory added twice)
  • ❌ Add unrelated files to project directories

​
File Editing

Tips:
  • Save frequently - Even with auto-save, Cmd/Ctrl+S is a good habit
  • Review changes - Before asking Calmo to deploy, review your edits
  • Use version control - Keep files in git; the editor doesn’t have undo history across sessions
  • Test locally - Edit → Save → Test before deploying
When to Edit in Bridge vs. IDE: Use Bridge editor for:
  • Quick config tweaks
  • Viewing files during chat
  • Small changes suggested by Calmo
  • Files you want to reference in conversation
Use your IDE for:
  • Large refactorings
  • Complex multi-file changes
  • Debugging sessions
  • Long coding sessions
The Bridge editor is designed for quick edits and AI collaboration, not as a full IDE replacement.

​
Keyboard Shortcuts

​
File Browser

ActionmacOSWindows/Linux
Expand/Collapse FolderClick or →/←Click or →/←
Navigate↑/↓↑/↓
Open FileEnterEnter
Add WorkspaceCmd+Shift+OCtrl+Shift+O

​
Editor

ActionmacOSWindows/Linux
SaveCmd+SCtrl+S
FindCmd+FCtrl+F
ReplaceCmd+HCtrl+H
Go to LineCmd+GCtrl+G
Comment LineCmd+/Ctrl+/
Close TabCmd+WCtrl+W

​
Troubleshooting

​
Workspace Not Appearing

If a workspace doesn’t show in the sidebar after adding:
  1. Check permissions - Ensure the directory is readable
  2. Refresh - Close and reopen the bridge
  3. Verify path - Confirm the directory exists at the path you added
  4. Check logs - Look for errors in the Activity Log

​
Files Not Opening

If clicking a file doesn’t open it:
  1. Check file size - Very large files (> 10MB) may not open
  2. Binary files - Non-text files show a preview instead of opening
  3. Permissions - Ensure you have read access to the file

​
Editor Changes Not Saving

If edits aren’t persisting:
  1. Check write permissions - Ensure the file isn’t read-only
  2. Save manually - Try Cmd/Ctrl+S
  3. Check disk space - Ensure you have free space
  4. Restart bridge - Close and reopen the application

​
MCP Server Won’t Connect

If a server shows disconnected:
  1. Check config - Open mcp.json and verify syntax
  2. Reload server - Use the Reload Server button
  3. Check logs - Look for error messages in Activity Log
  4. Verify command - For stdio servers, ensure the command exists

​
Next Steps

CLI Tools Reference

Learn about executing commands and using the integrated terminal

MCP Configuration

Detailed guide to configuring and managing MCP servers

Best Practices

Workflow tips for using the integrated environment effectively

Troubleshooting

Solutions to common workspace and editor issues
For assistance with workspace management, contact our support team at [email protected].
